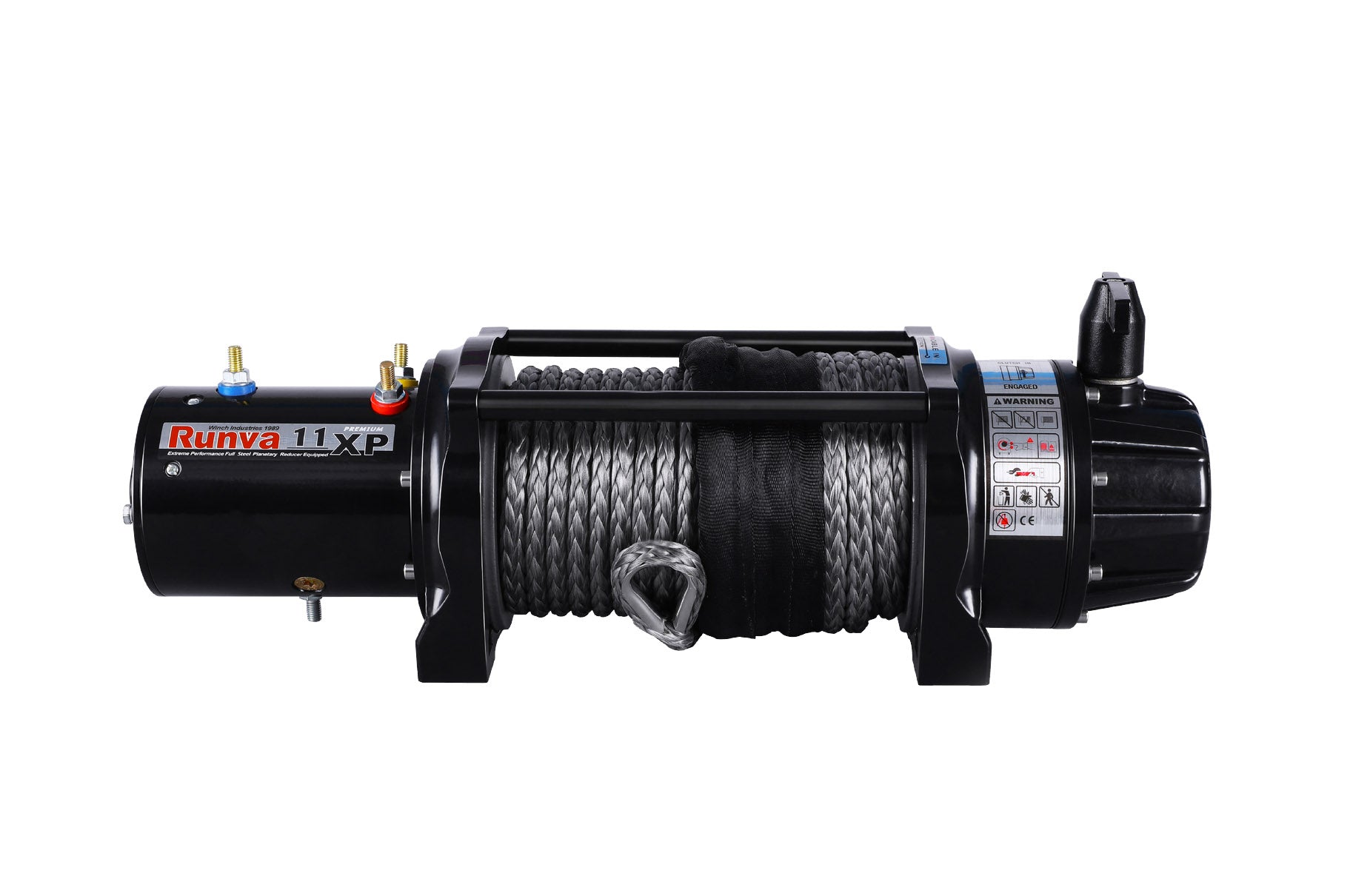

RUNVA 11XP PREMIUM 12V WITH SYNTHETIC ROPE

$1,050.00

Description

FEATURES:

  • 11,000LB LINE PULL CAPACITY
  • IP67 INGRESS PROTECTED
  • FITS 99% OF ALL 4X4 WINCH BARS AVAILABLE TODAY
  • RATCHET BRAKE IN GEARBOX
  • AVAILABLE IN 12V AND 24V
  • STEEL CABLE OPTION AVAILABLE
  • AIR FREESPOOL CLUTCH AVAILABLE
  • IF YOU WANT THE BEST – LOOK NO FURTHER!

THE WINCH THAT HAS IT ALL. The Runva 11XP Premium really does have it all. Perfect for just about any 4X4 on the market today – small to large. Featuring a massive 11,000lb of line pull from the powerful and reliable 6.7HP motor. The gearbox is a three stage planetary setup with tough 228:1 gear ratio to handle even the toughest recoveries. Whether you are driving a Hilux, Ranger, Landcruiser, or anything in between, this winch will get you out of trouble!

This model is also proudly featured on most of the vehicles used by 4WD 24/7. If you have seen the insane winching they do with the 11XP Premium in order to get out of the tracks they tackle, you know you are buying a quality winch that you can be confident in owning and using. After all of the winching they have done over the past couple of years, including pulling 2 dead vehicles tied together up a track, they have not had a single Runva fail on them.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The 11XP Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.

SPECIFICATIONS:

RATED LINE PULL: 11,000LB (4,990KG)
MOTOR : (12V) 5.0KW/6.7HP; (24V) 6.0KW/8.2HP
GEAR TRAIN: FULL STEEL 3 STAGE PLANETARY
GEAR RATIO: 228:1
CLUTCH TYPE: STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION: GEARBOX CAN BE ROTATED
BRAKE: AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE: SYNTHETIC ROPE
CABLE SIZE: 10MM X 25M
DRUM SIZE: 63MM X 217MM
MOUNTING BOLT PATTERN: 254MM X 114.3MM
OVERALL DIMENSIONS: 574MM X 160MM X 200MM
REMOTE CONTROL: HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS: 2X 1.8M HEAVY DUTY LEADS
FINISH: BLACK POWDER COAT
WARRANTY: LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY
SKU: 11XPPREMIUM12VD
SHIPPING WEIGHT: 37.50KG
SHIPPING WIDTH: 0.330M
SHIPPING HEIGHT: 0.330M
SHIPPING LENGTH: 0.635M
NOTE:
Price Listed is for Supply Only. Please contact us if you need a quote for both supply and installation (02 9569 4217) Email: service@fastfitbullbars.com.au
STOCK LEVELS MAY VARY. PLEASE CHECK BEFORE ORDERING.

Additional information

Weight 37.5 kg
Dimensions 63.5 × 33 × 33 cm
