DESCRIPTION

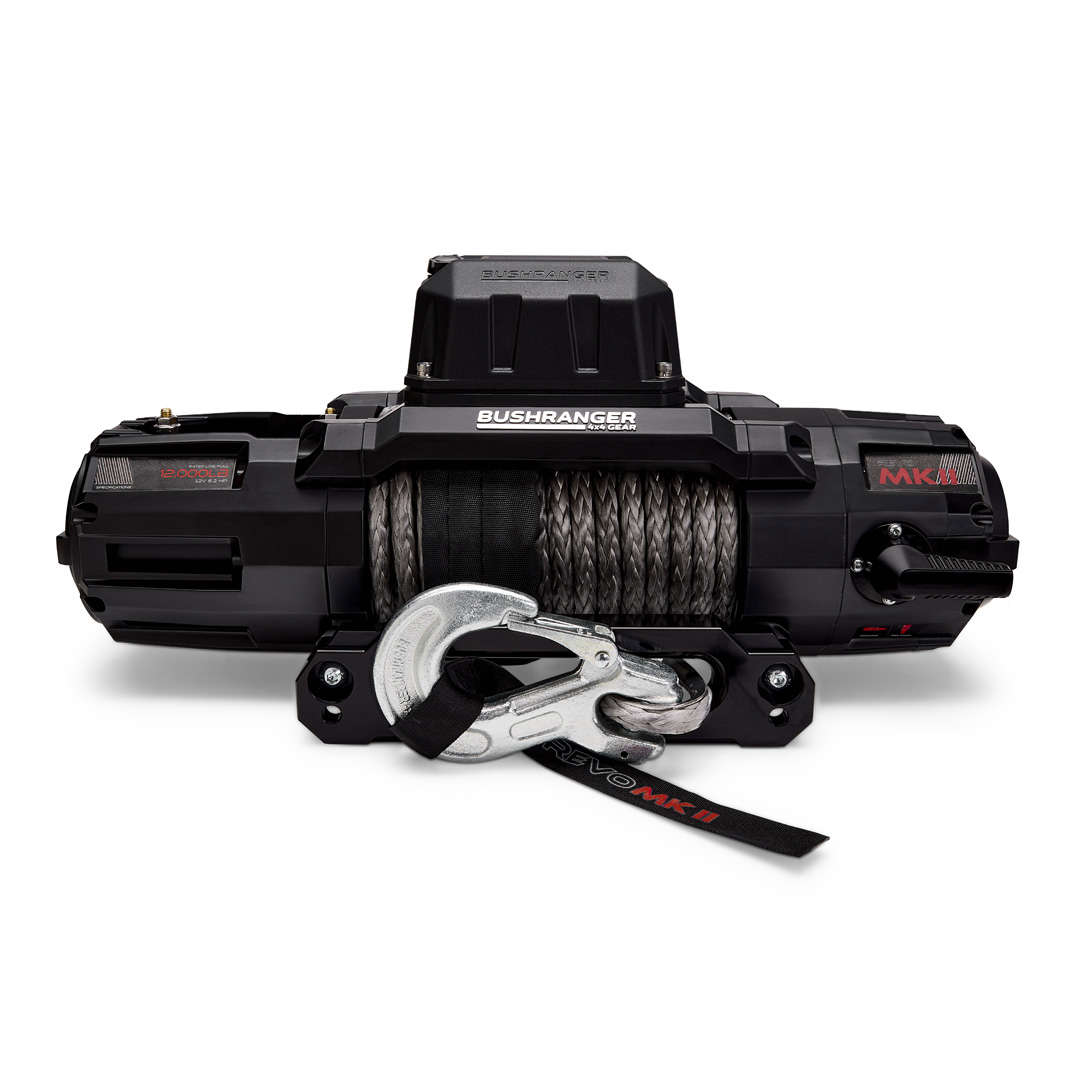

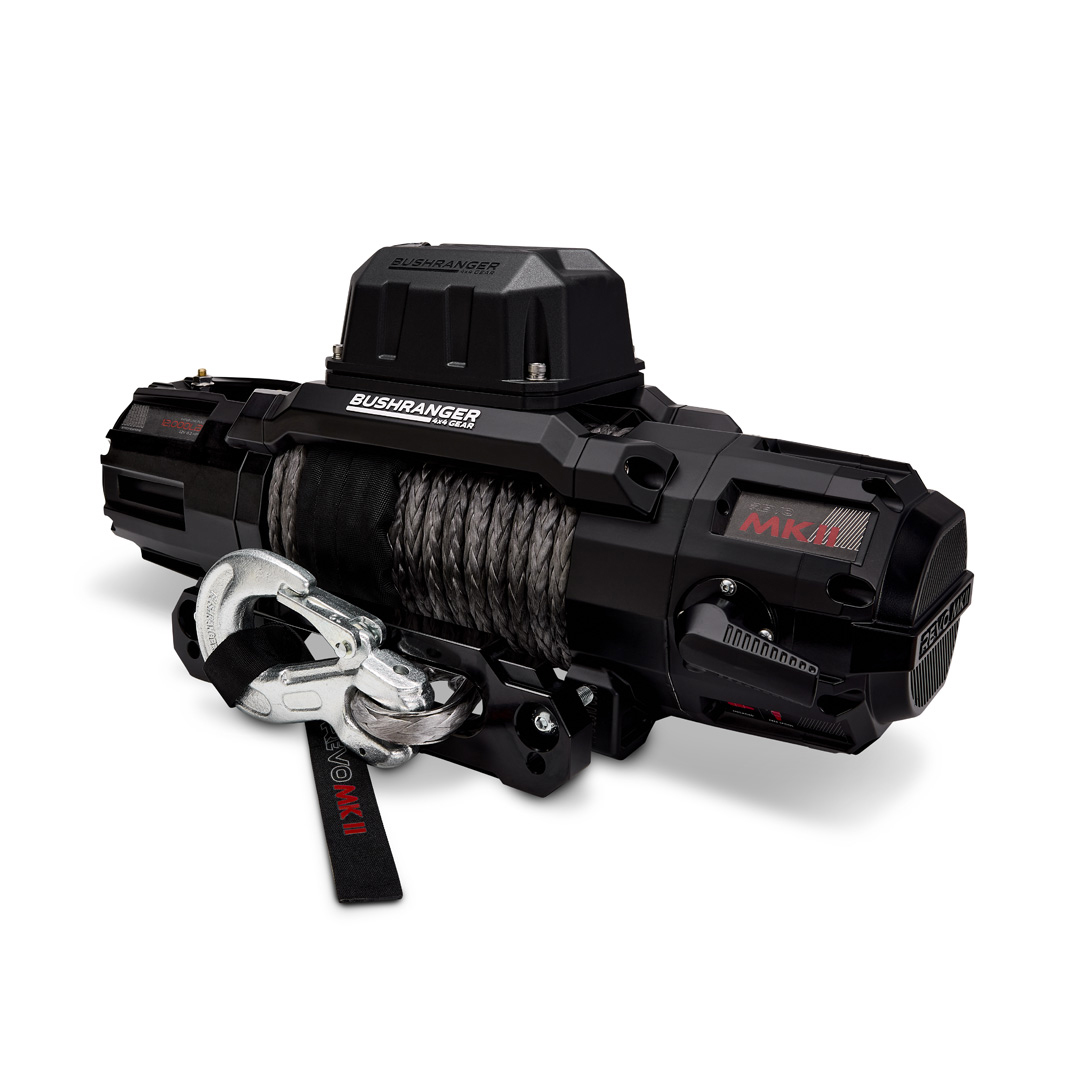

The Bushranger REVO MKII vehicle recovery winch has been engineered to meet the demands of serious off-road enthusiasts who require dependable performance, even in the most challenging environments.
Boasting a wide range of upgrades stemming from years of real-world testing and feedback, the result is an overall lighter weight, easier to fit, safer and more compact winch with increased durability over its predecessor.
FEATURES AND BENEFITS
ENGINEERED & PROVEN IN AUSTRALIA
The highest quality components and rigorous test methods ensure reliability and longevity even within the harshest environments.

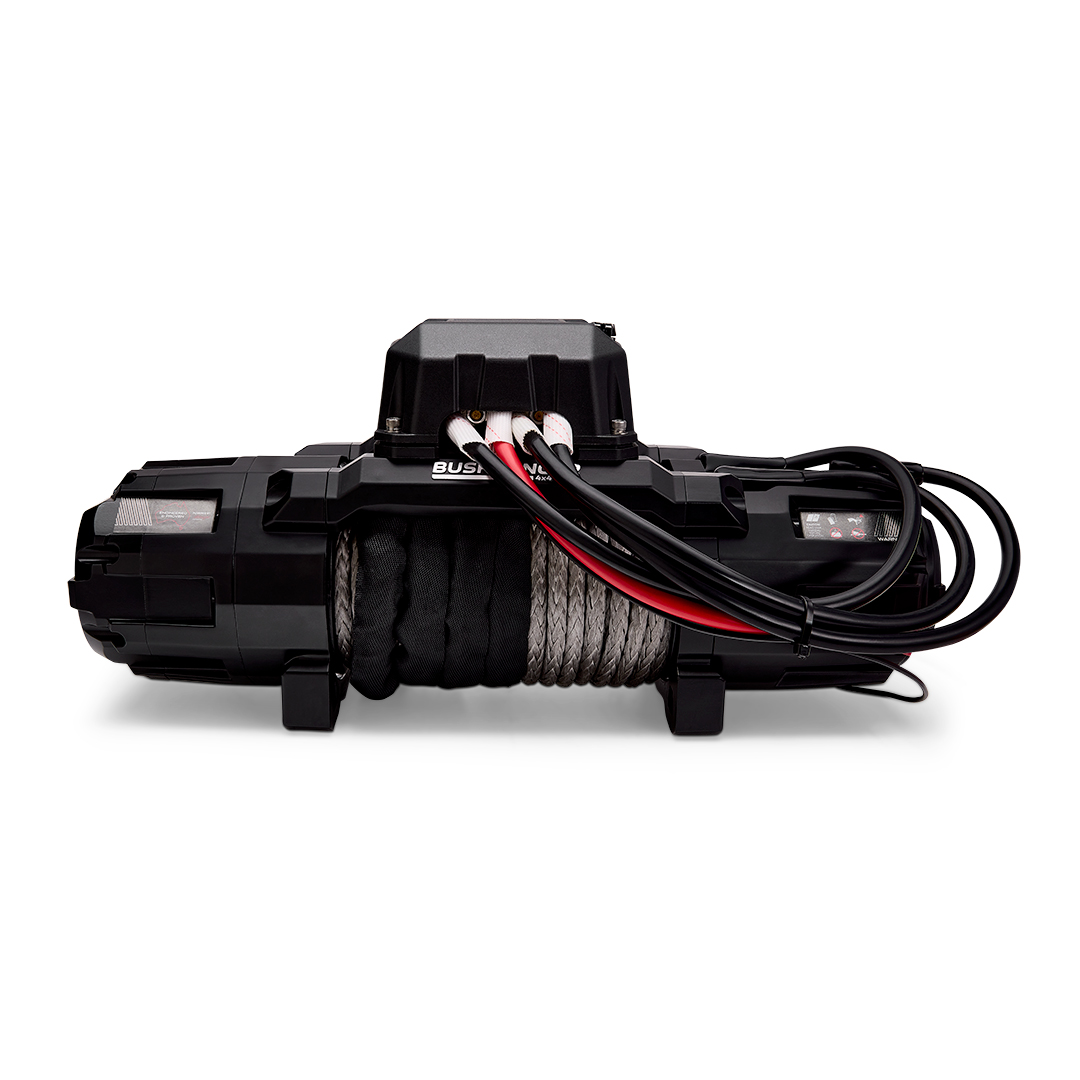

COMPACT MULTI-FIT CONTROL BOX
The compact, lightweight control box provides easier installation in confined areas, reduces interference, and incorporates numerous threaded insert locations for immediate fitting in most bull bars.
ALBRIGHT CONTACTOR
The Albright DC contactor stands out in the market with its top-of-the-line quality. Sealed with an IP67 rating, it manages the winch motor function with unmatched durability and longevity, ensuring reliable operation time after time.
PREMIUM MOTOR DESIGN
The 12V, 6.2HP series wound motor is constructed using high-grade materials to reduce current draw and increase line speeds, providing a prolonged motor lifespan under full load conditions.
ZERO DRAG BRAKING SYSTEM
The gearbox-mounted brake provides 100% load holding and the capacity for fast-powered unspooling, under no load, without any damage to the winch.
4 STAGE GEARBOX
Features hardened steel gearing for improved load distribution, maximum strength and durability, and is externally adjustable in 16 clocking positions for perfect clutch handle orientation in any vehicle.
ROBUST CONSTRUCTION
Uncompromised strength and rigidity are at the core of the tough aluminium alloy body, finished with a durable satin black powder coat.
EFFORTLESS CLUTCH OPERATION
The astute no-lift clutch handle reduces fitment interference and presents simple operation even within those hard-to-reach locations. Factory positioned for 90% of bull bar fitments.
POWER ISOLATION SWITCH
The highest level of safety comes standard with the inclusion of a 500amp winch isolation switch, providing complete separation of the winch from the vehicle battery when the winch is not in use.
WATER & DUSTPROOF
The completely sealed motor & gearbox is rated to IP68 standard for maximum water, dust and debris protection.

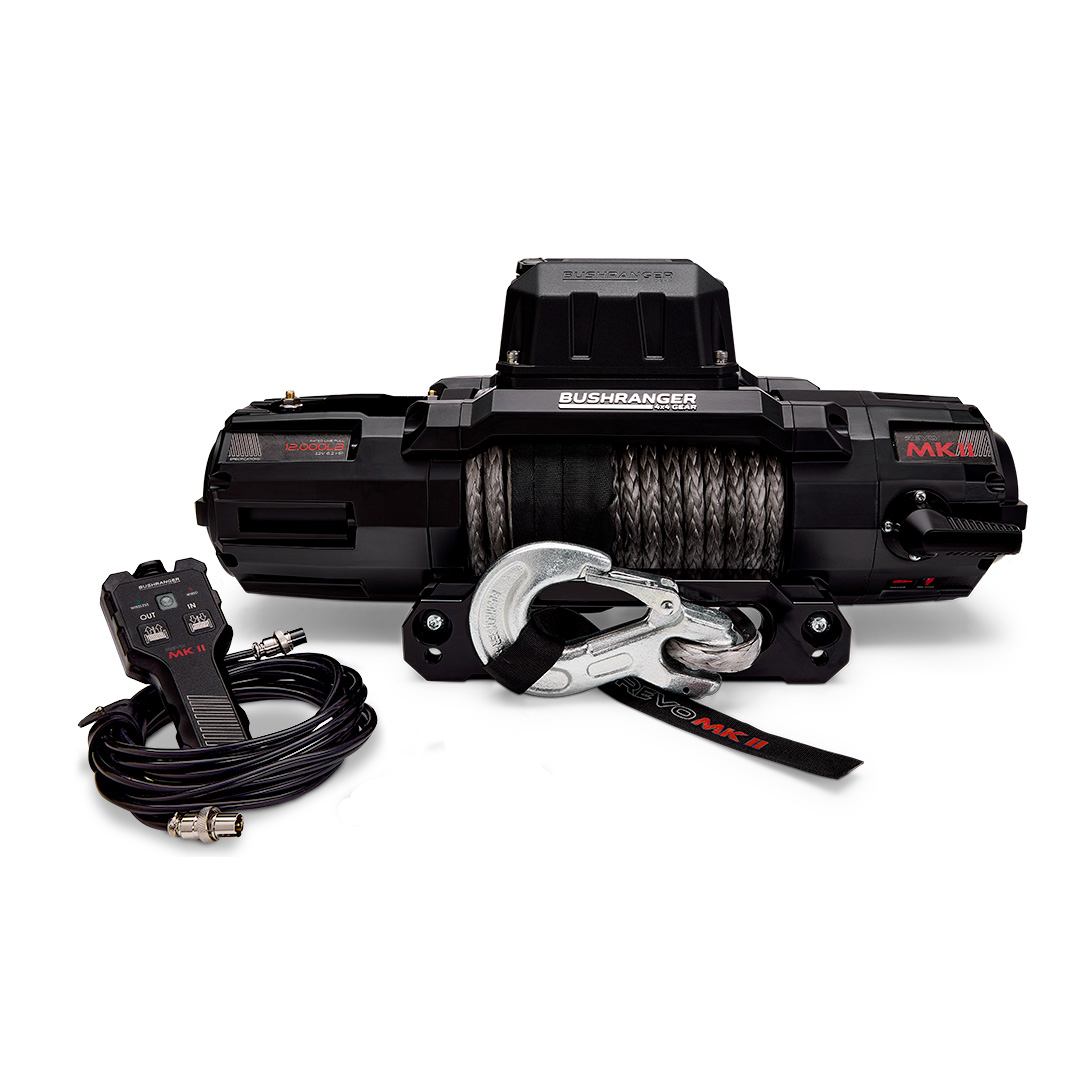

WIRELESS & WIRED REMOTE
The compact wireless-enabled hand controller contains a lacquered PCB allowing function within a 30m wireless range or by the direct connection 5m lead.
FITTED WEIGHT
33.9kg
KIT INCLUDES:
REVO MKII winch, synthetic rope (24m x 11mm) with protective sleeve, prewired control box, dual connection remote control, forged steel hook with pull tag, aircraft grade aluminium hawse fairlead, main power isolation switch, heavy gauge wiring, hi-tensile mounting hardware.
SPECS & PERFORMANCE
MODEL: RWM120S
DIMENSIONS: 600mm (L) x 194mm (W) x 185mm (H)
WEIGHT: (FITTED) 33.9kg
RATED LINE PULL: (1st Layer) 12,000lbs (5, 443kg)
MOTOR: 4.6kW (6.2 HP)
REMOTE CONTROL: Dual Connection Remote Wireless – 30m range / Wired – 5m Lead
ELECTRICAL CONTACTOR: Albright DC88P Contactor
GEARBOX: 171:1 2 Stage Planetary & 2 Stage Spur gear
BRAKE: Gearbox mounted 100% load holding proportional friction brake
CLUTCH: Rotating Ring Gear | 90° Turn handle (no lift)
ROPE: Grey 11mm diameter x 24m Synthetic Rope with Protective Sleeve
FAIRLEAD: Two Position, Aircraft Grade Aluminium Hawsw fairlead
FINISH: Electrophorus Pretreated Black Satin Powder Coated Finish
WATERPROOF RATINGS: IP68 Winch Motor and Gearbox
WARRANTY: Limited Lifetime Warranty (7 Year Warranty on Electrical Components)
CERTIFICATIONS: CE
