Description
DESCRIPTION:
DURABLE EXTERIOR UV stable polyester powder coat, polycarbonate lens and covers ensure long term durability to handle even the toughest Australian conditions.

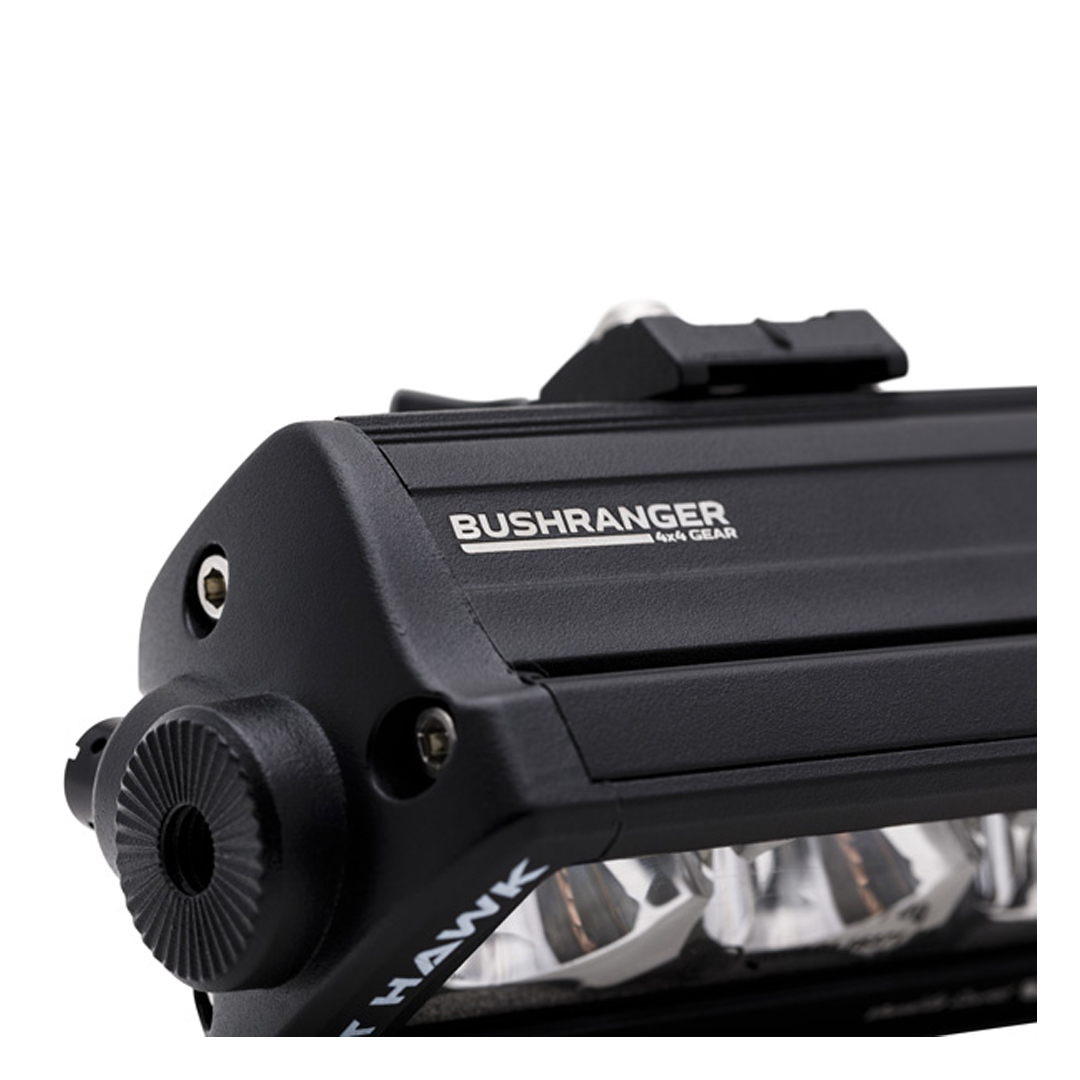

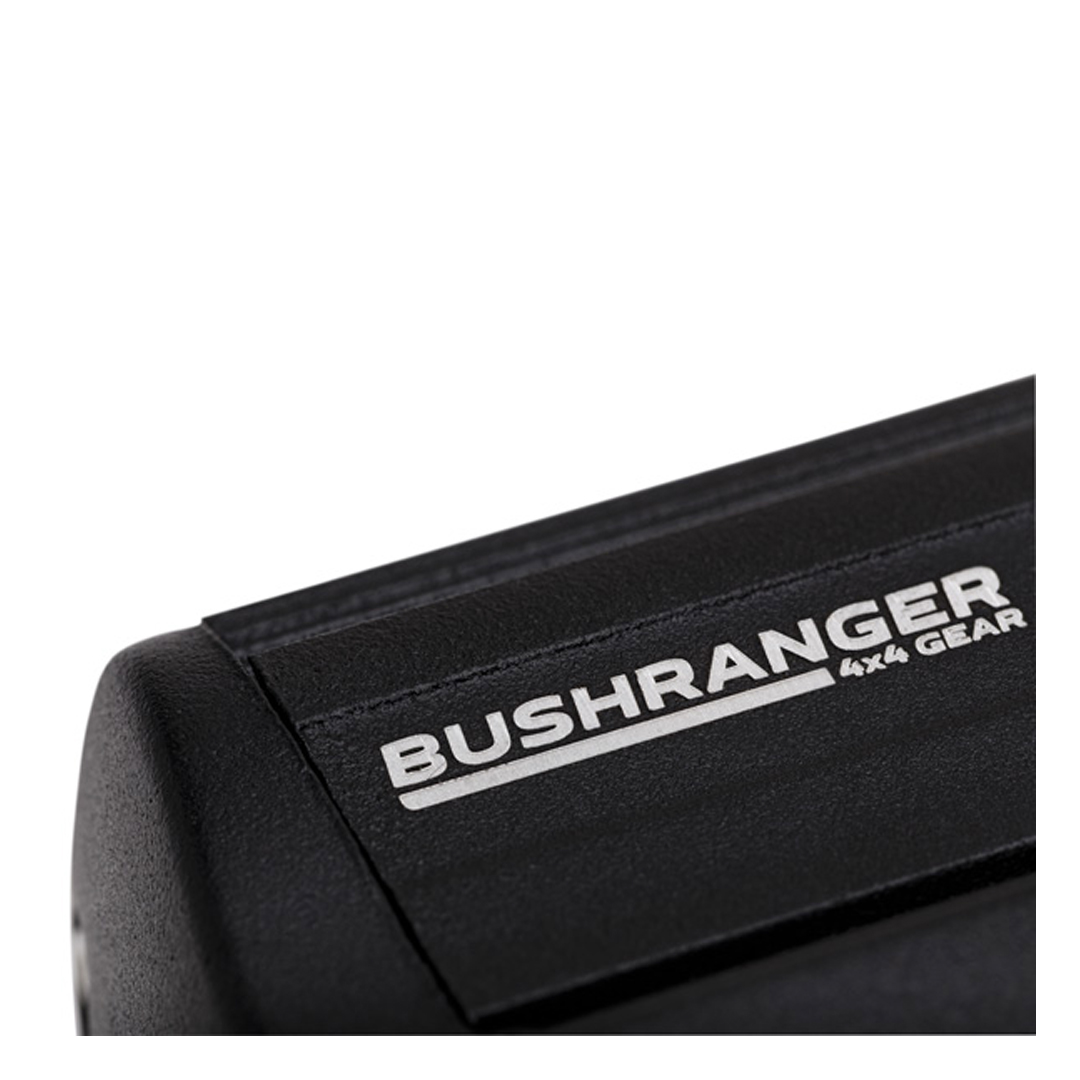

BUILT TOUGH Extruded, 6061 aircraft grade aluminium housing and cast alloy mounting feet offers long term strength and durability.

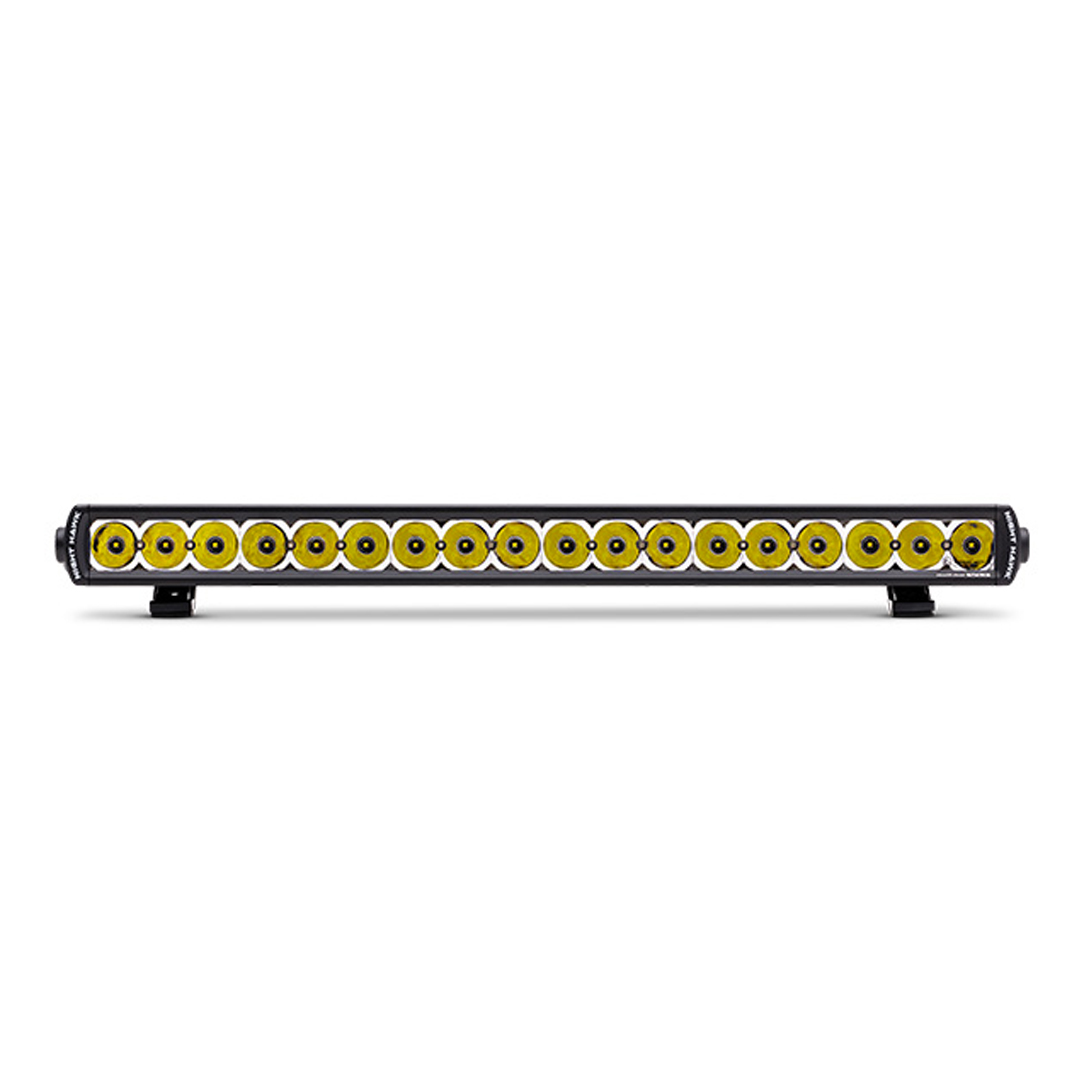

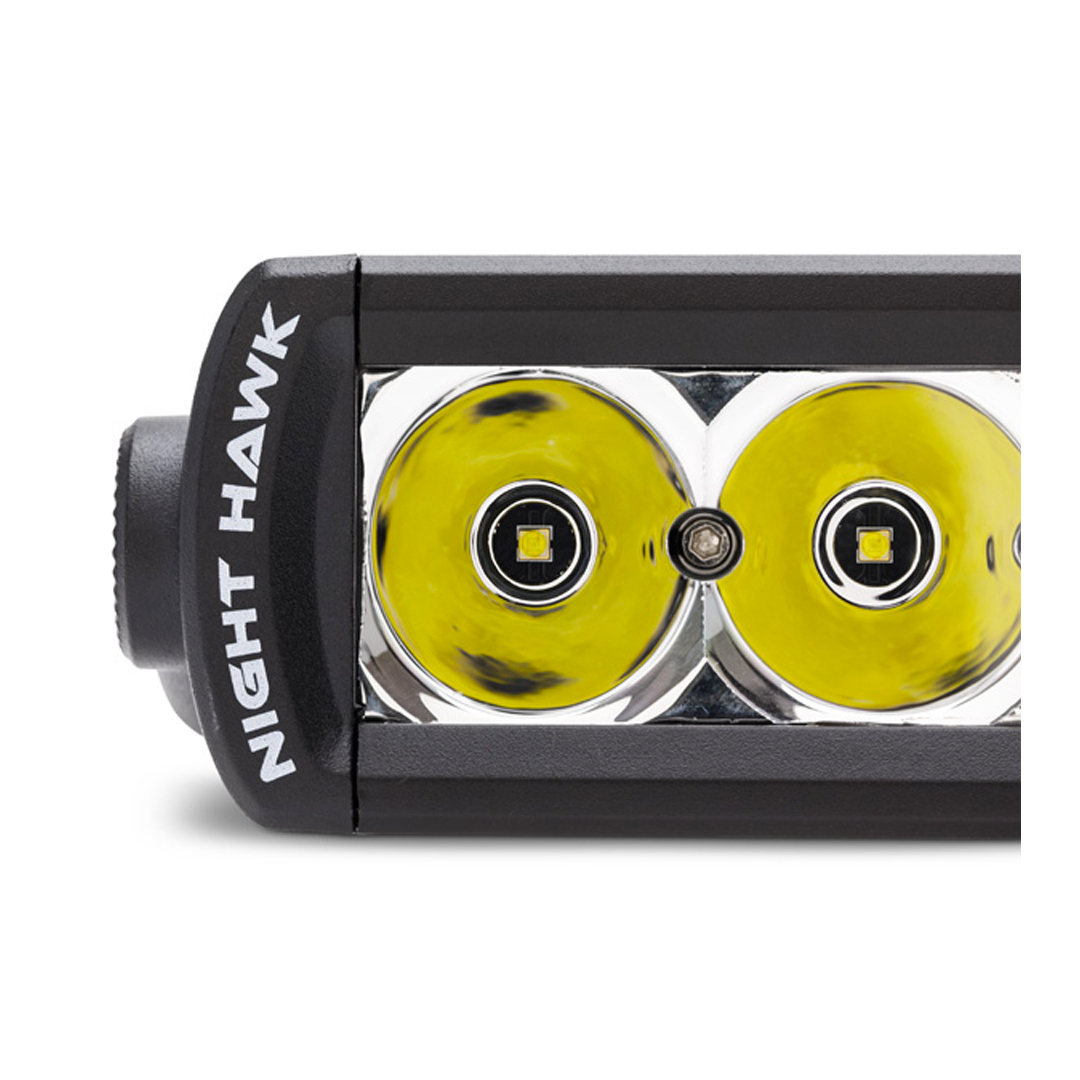

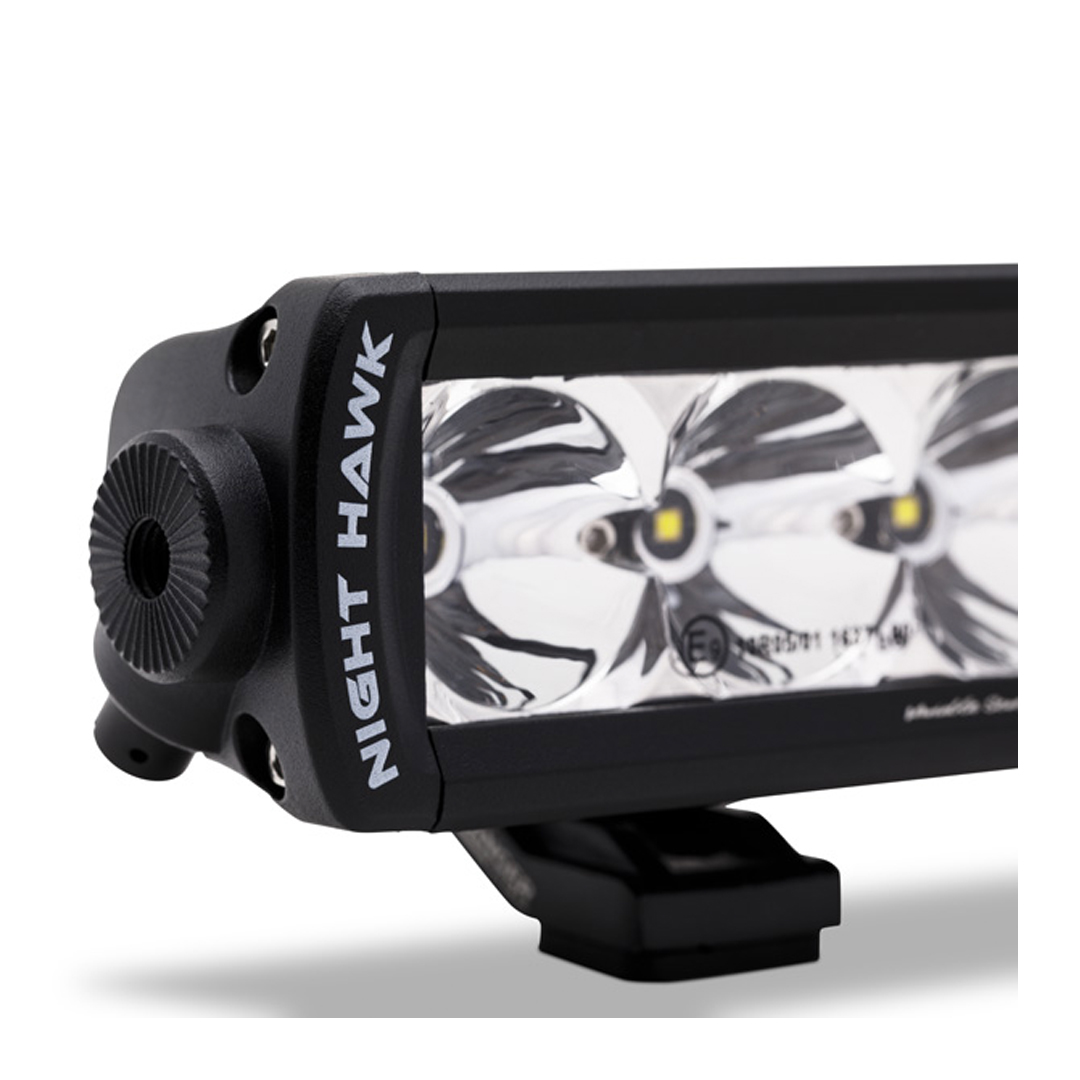

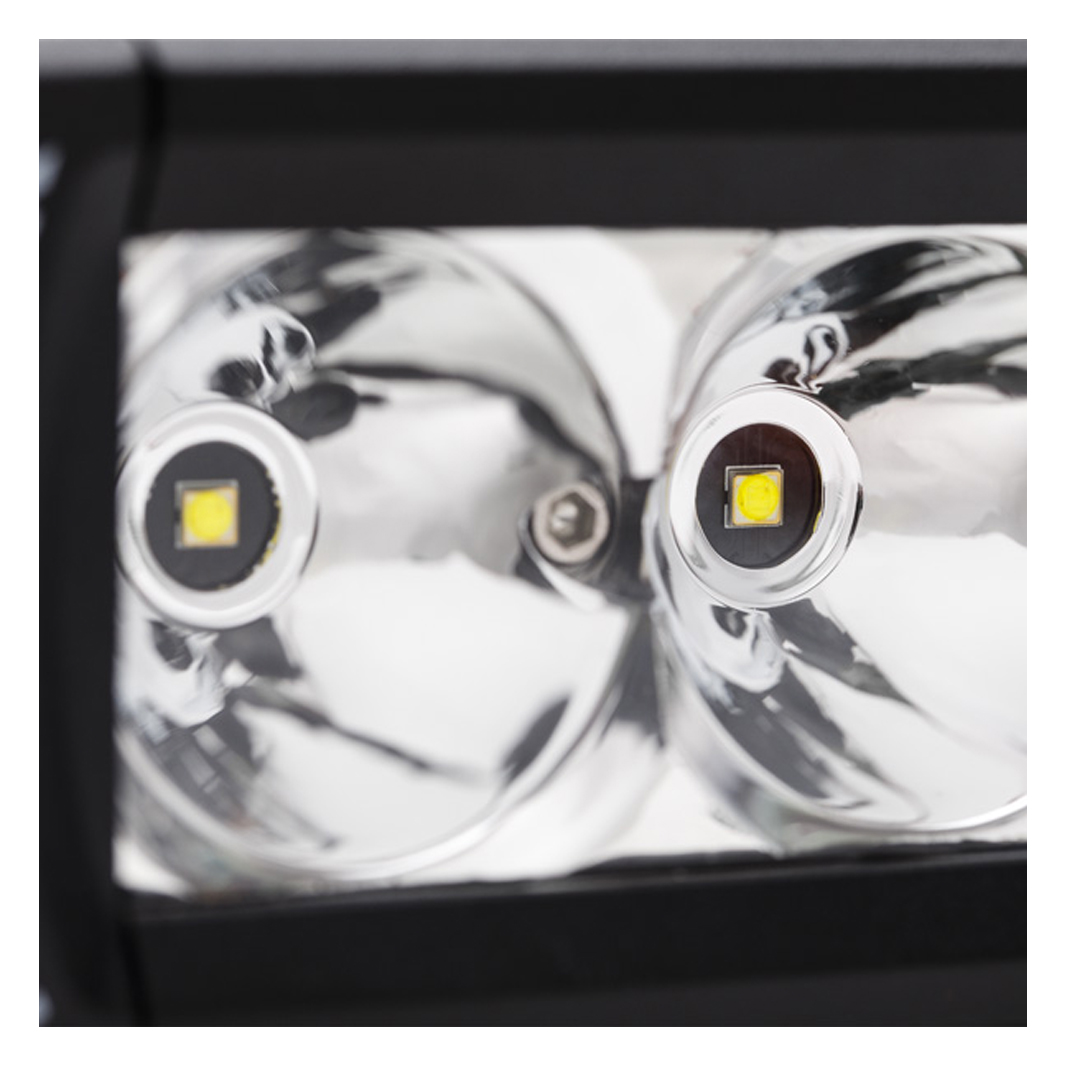

HIGH OUTPUT OSRAM LED’S genuine, high output OSRAM LED’s for unmatched performance.
MODERN ELECTRONICS DESIGN Built in Transistor switching simplifies wiring installation by removing the need for traditional 12V relays. PWM dimming capability for brightness control at the turn of a dial. (Wiring system sold separately)
ACTIVE TEMPERATURE CONTROL SYSTEM Intelligent onboard monitoring of the LED temperatures, combined with the superior cooling design, allows for maximum output in all conditions.

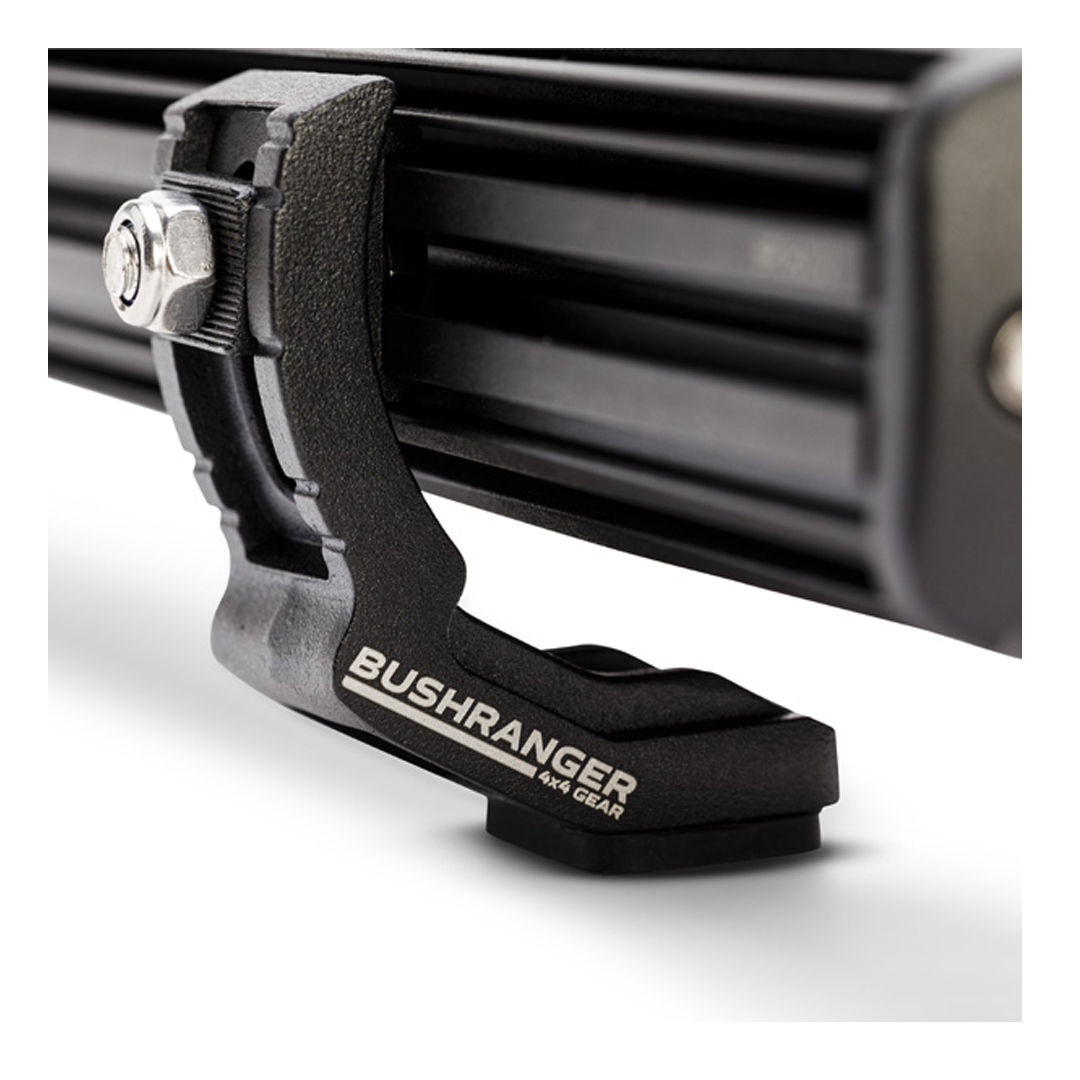

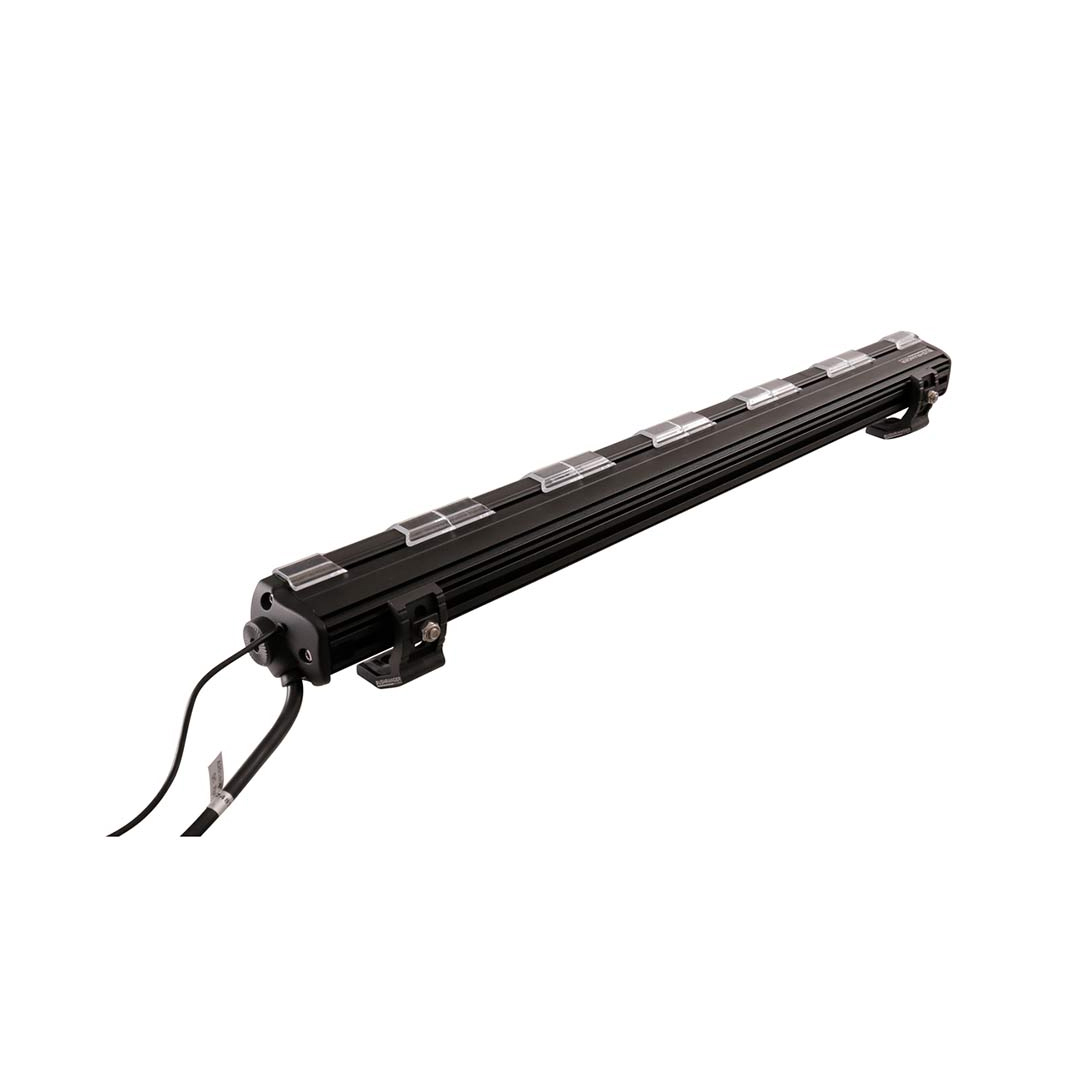

VERSATILE INSTALLATION Lightweight and a low-profile design with highly adjustable sliding mounting feet allow for diverse fitment.

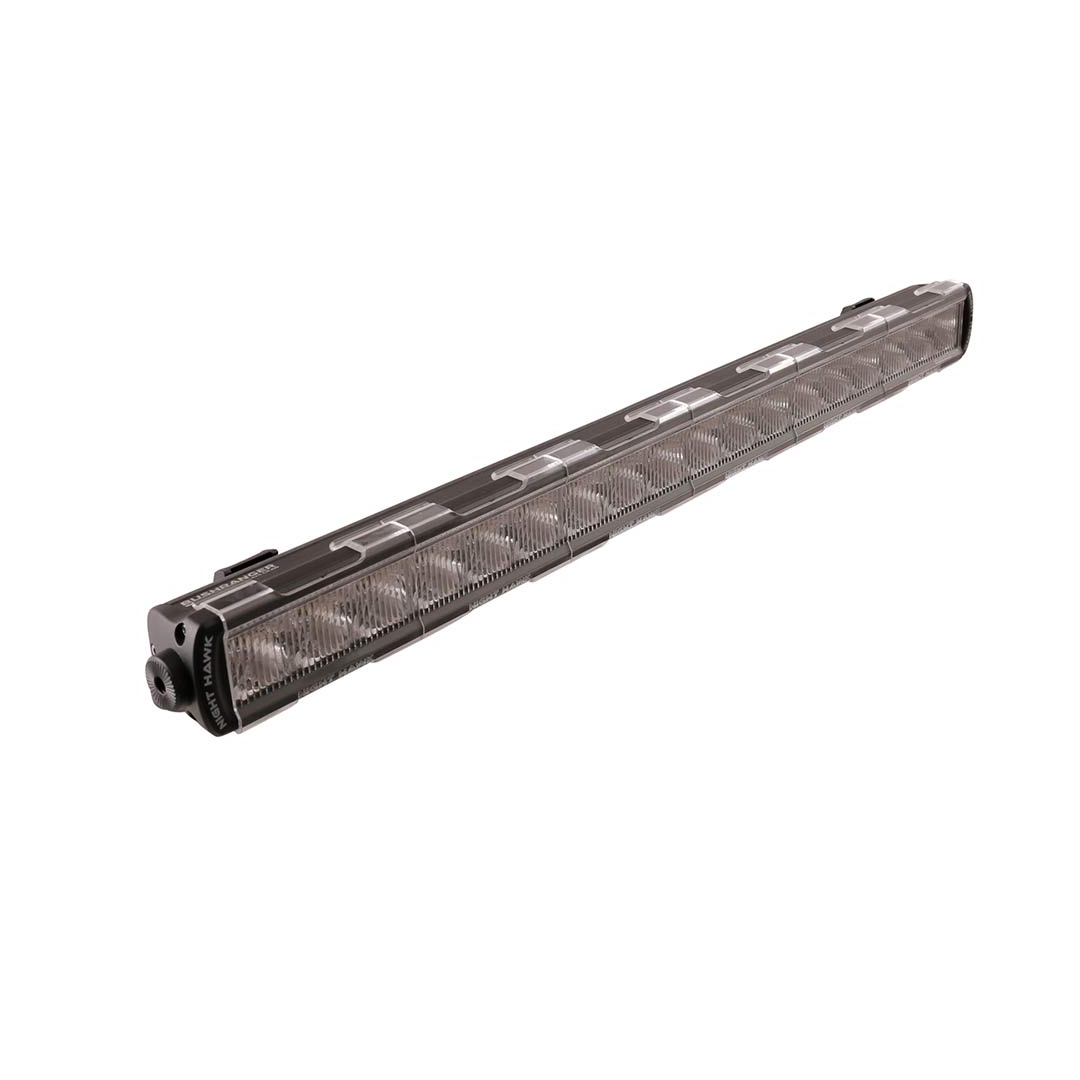

CHANGEABLE BEAM PATTERN Full set of clip on/clip off spot beam and flood beam protective covers allows complete customisation of the beam pattern.
ACCESSORIES AVAILABLE Protective covers: spot, flood, diffused, black, clear and orange and clamp brackets (pair). (sold separately)
SPECIFICATIONS:
- Size: 24.5″
- Power: 78W
- Current Draw: 5.4A@14.4V
- Voltage Range: 10-30V DC
- Genuine OSRAM LED Qty: 18
- Lumens (effective): 6280 (without covers)
- Colour Temp.: 5700K
- Power Plug: Deutsch DT
- Weight: 1.85kg
- Overall Length (L): 621mm
- Mounting Hole Adjustment Range (D): 546mm
- No. of Covers: 6
- Mounting Feet: 2
- Warranty: 5 years
Without Covers Spot Flood
Max distance @ 1 lux 697m 654m 309m
Max Width @ 1 lux 47m 38m 96m
NOTE: Price listed is for supply only. Wiring and Fitting Charges are extra. Please contact us for quotation for both supply and installation. (02 9569 4217) or Email: service@fastfitbullbars.com.au
STOCK LEVELS MAY VARY. PLEASE CHECK BEFORE ORDERING.
